What Is An Isolator Switch And The Benefits Of Using One?

Apr 19 ,2023 Site Editor

An isolation switch is a switch that is used to isolate a circuit or piece of electrical equipment from the main power source. It is designed to provide a safe method for turning off power to a specific part of a system or machine for maintenance, repairs, or safety reasons.

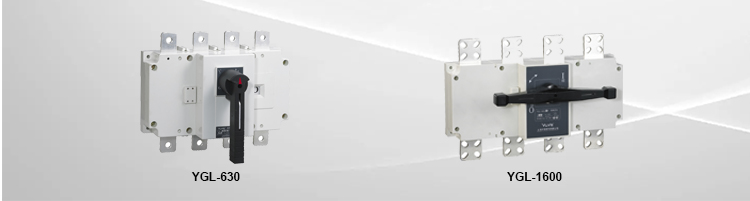

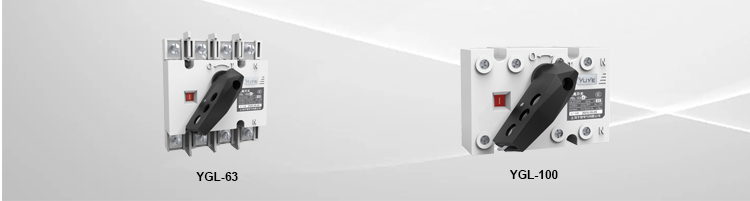

What is an isolator switch?

A disconnector is an electrical safety device used to connect electrical equipment with the electrical system. A disconnector is usually used to operate in a power failure state to ensure the safety of workers. By cutting off power, disconnect switches protect electrical equipment and personnel from hazards such as accidental electric shock and short circuits. The isolation switch usually has a visible handle that can be locked or tagged out to ensure that the circuit or equipment remains isolated while work is being carried out. Disconnectors are mostly manually operated, but there are some disconnectors that can be operated by automatic control.

Isolation switches are commonly used in industrial and commercial applications but can also be found in domestic settings.



What are the benefits of using an isolator switch?

A disconnector, also known as an electrical disconnector or safety switch, is a device commonly used in electrical circuits to isolate circuits and ensure safety during maintenance or repair work. Here are some benefits of using an isolator:

1. Provides Safety: A disconnect switch can be used to safely disconnect a circuit from the power supply, minimizing the risk of electric shock or fire.

2. Ease of maintenance work: Isolation switches are usually used to isolate a specific part of the circuit for maintenance work, thereby achieving safe maintenance of mechanical equipment.

3. Protect equipment: Disconnectors can protect electrical equipment from power surges and overloads.

4. Ease of testing: Isolation switches can be used to disconnect specific parts of an electrical system, allowing easy testing of individual components without affecting the entire system.

Overall, the use of isolating switches is an important safety measure that reduces the risk of accidents and equipment damage during routine maintenance or repair work.



How does an isolator switch work?

A disconnect switch, also known as a disconnect switch or disconnect switch, is a device designed to disconnect power from a specific circuit or device. It works by providing an air gap between the power source and the circuit or device, breaking the electrical connection.

The isolation switch has two states: ON and OFF. When in the ON state, the switch allows current to flow, while in the OFF state, the device interrupts the flow, effectively isolating the circuit or device from the power source. This ensures that maintenance work, repairs or replacements can be carried out safely without any risk of electrocution or electrocution.

Disconnectors are commonly used in industrial applications including switchboards, motors and other high power electrical equipment. They are also used in residential settings, for example in the form of a main power switch or for appliances requiring routine maintenance or repair.


How do I install an isolator switch?

Installing an isolator typically involves the following steps:

1. Turn off the power to the circuit you want to operate. You should turn off the main power breaker.

2. Choose a suitable location for the disconnect switch. It should be easily accessible and within line of sight of the equipment requiring isolation.

3. Install the switch box. Secure the box to the wall using screws and anchors, making sure it is level.

4. Feed the wires through the knockout hole in the switch box and remove the knockout plug.

5. Connect the ground wire to the ground screw in the switch box.

6. Connect the live wire to one side of the switch and the load wire to the other side of the switch.

7. Tighten the wire nut securely and neatly onto the wire.

8. Screw the switch onto the switch housing.

9. Turn power back on and test the switch.

It is always recommended to consult a licensed electrician to complete the installation safely and correctly.



How do I know if residential settings or industrial applications is suitable for an isolator switch?

Whether a disconnect switch is suitable for a residential or industrial environment depends on the voltage and current requirements of the electrical system. For residential environments, disconnect switches are typically used in low-voltage applications such as appliances, lighting, and HVAC systems. Industrial environments may require larger equipment and machinery with higher voltage and current ratings. In general, disconnect switches are suitable for residential and industrial environments as long as they meet the appropriate voltage and current ratings required for the particular application. Always consult a qualified electrician or engineer to ensure the correct disconnect switch is selected for the intended use.


Are there any dangers associated with using an isolator switch?

To isolate electrical circuits, using an isolator is potentially dangerous if certain safety precautions are not taken:

1. Electric shock: Disconnect switches are designed to remove power from an appliance, device, or circuit. However, switches must be used correctly and carefully to avoid electric shock that could result in personal injury or death.

2. Fire risk: If an isolating switch is used on an overloaded circuit, the switch will heat up and cause a fire. It must be ensured that the load disconnected by the disconnector does not exceed the rated load capacity of the switch.

3. Arcing and sparking: When a disconnect switch is opened or closed, an electric arc or spark can be generated that has the potential to ignite nearby flammable materials or gases.

Therefore, the disconnect switch should be located in a safe and accessible location with clear access and unobstructed visibility. It's also important to make sure the isolator is inspected regularly and any defects or damage are addressed before use. It is recommended that you seek the assistance of a qualified electrician or engineer to ensure proper installation and maintenance of the disconnect switch.


To wrap things up

In general, isolating switches protect the safety of personnel and equipment by isolating power supplies, and are commonly used in power distribution and control applications in various industries.
