ATS switch cabinet

Get A Quote PDF

Product Details

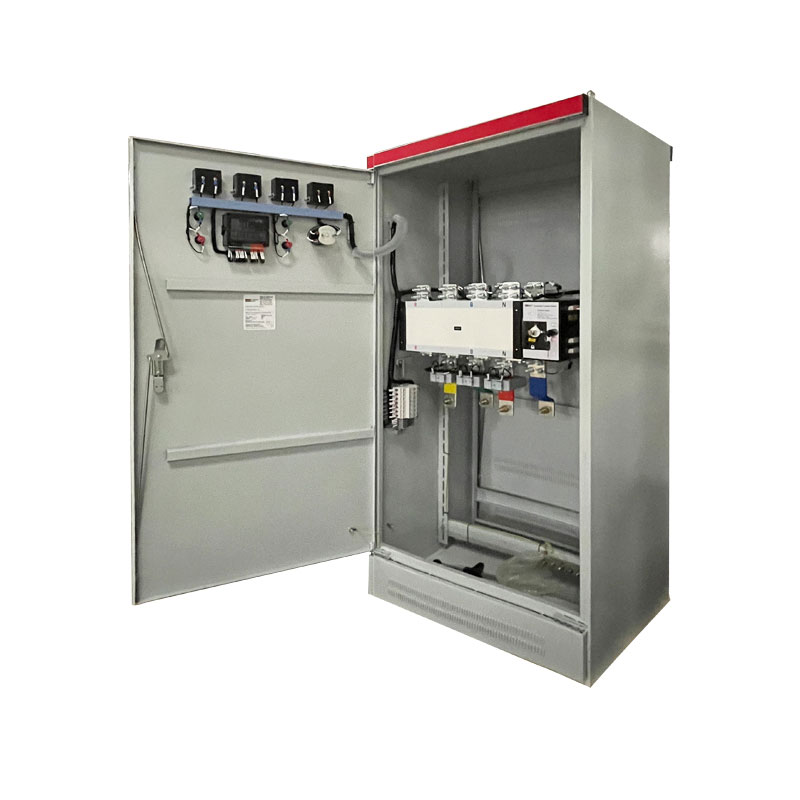

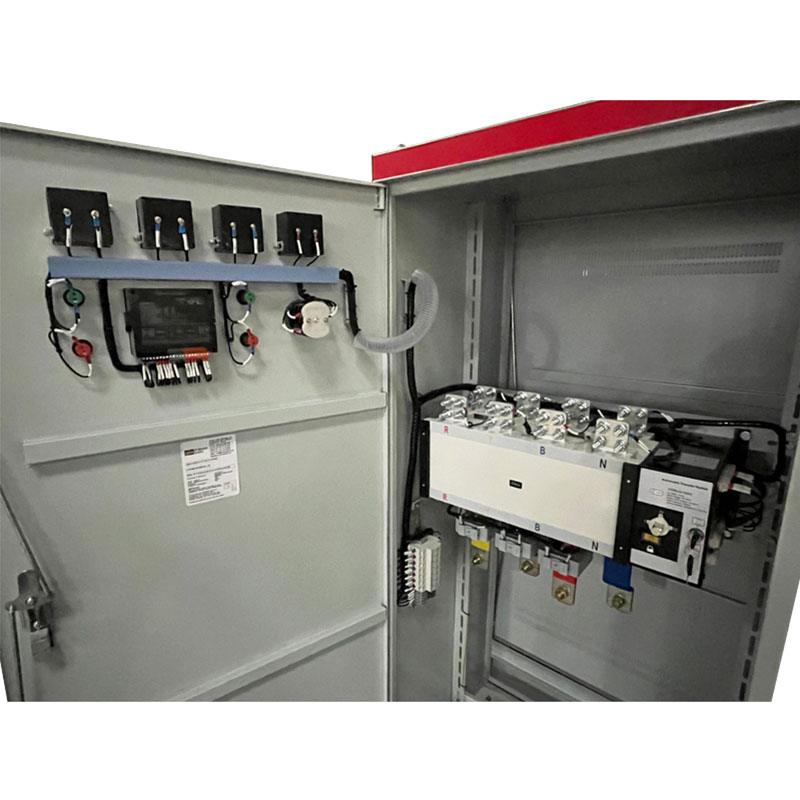

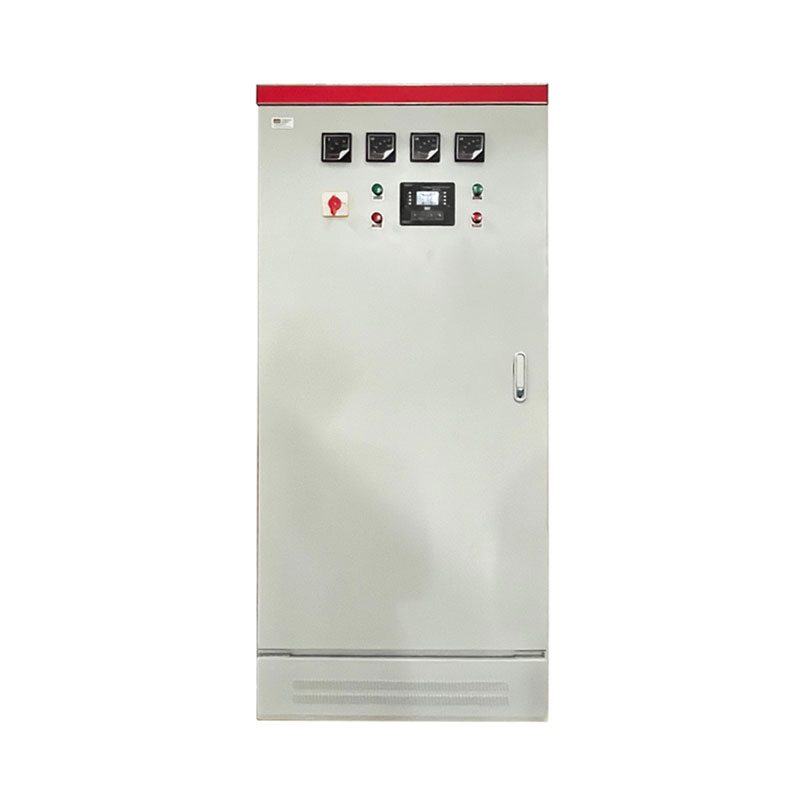

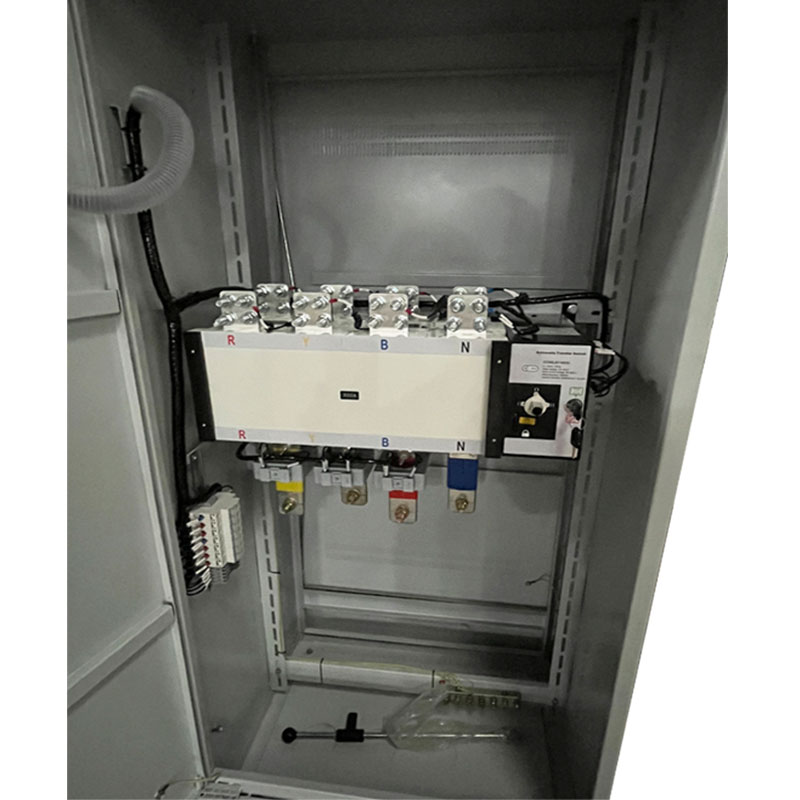

ATS Cabinet Wall-mounted

1 Dual circuit power input, automatic detection and switch (support a variety of switching modes);

2 Wide capacity setting, 63-4000A, flexible configuration according to the back-end load capacity;

3 High reliability, adopt well-known brands switch devices, equipped with lightning protection device, electrical performance factory inspection;

4 Intelligent monitoring, equipped with a 4.3-inch touch screen/smart meter, it could detect the current, power and power consumption.etc.

5 Convenience maintenance , support front and back side maintenance;

6 Complete quality certification,

Product Parameters


Parameter value

Input capacity

63A-4000A ATS, optional

Cabinet size

600/800/1000/1300*600*2000 (WxDxH),

according to the size of the ATS.

Types of communication


Lightning protection level

Class B, 60kA (8/20 mu s)

Maintenance mode

front and back sides maintenance

Protection grade

IP54.Can be customized on request

input/output line mode

in and out from upside/in and out from downside

installation mode

fixing on the floor

Cooling way

Natural cooling


3C certification


Bus/plastic shell

Monitoring parameters

Monitor input voltage, current, power, power factor, frequency and quantity of electric charge

Working temperature

Temperature 5 ℃ ~ + 40 ℃

Working humidity


The power supply system

380/400/415V 50/60Hz


0 ~ 2000m, limited using above 2000m.
