Installation And Debugging Of Plastic-Case Circuit Breaker

May 19 ,2023 Site Editor

Introduction to Molded Case Circuit Breakers


Before we dive into how to install a molded case circuit breaker, let’s take a moment to discuss what a molded case circuit breaker r trips or disconnects a circuit when the current is too high.  MCCBs can be used in a range of applicatieally is. A molded case circuit breaker, also known as an MCCB, is an electrical protection device that automaticallyons from residential to commercial and industrial environments. They are ideal for protecting electrical equipment from voltage spikes and other damaging electrical events.



Choosing the Right MCCB for Your Application


The first step in installing an MCCB is selecting the correct MCCB for your application.  MCCBs are available in a variety of sizes, ratings and breaking capacities, so choosing the right product is important. When selecting a molded case circuit breaker, factors such as available short-circuit current, load current, and ambient temperature should be considered. These factors will help you determine the right MCCB for your application.




Install MCCB

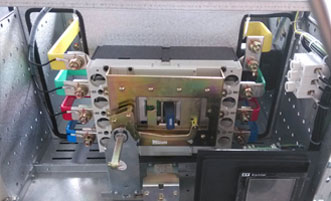

Once you've selected the appropriate MCCB for your application, it's time to install it. The installation process will vary depending on the specific MCCB you are using, but there are a few general steps that apply to most MCCB installations. First, turn off the power to the circuit you will be using. Then, open the enclosure or panel where the molded case circuit breaker will be installed. Next, mount the MCCB to a panel or enclosure using appropriate mounting hardware. Finally, connect the circuit wires to the MCCB according to the manufacturer's instructions.




Testing and Maintenance


After installing the MCCB, it is important to test it to make sure it is functioning properly. To test the MCCB, use a multimeter to measure the voltage and current of the circuit. If the current exceeds its rating, the MCCB shall trip or open the circuit. In addition, it is important to perform regular maintenance on the MCCB to ensure its continued reliability. This may include cleaning contacts, replacing worn or damaged parts, and inspecting equipment for signs of wear.


In summary, molded case circuit breakers are essential electrical protection devices that prevent damage to electrical equipment from voltage spikes and other electrical events. Selecting the proper MCCB for your application, installing the MCCB, and testing and maintaining it are all important steps in ensuring their continued reliability. By following proper installation methods and performing regular maintenance, you can ensure that your MCCB will protect your electrical equipment for years to come
