What is an automatic transfer switch and why do I need one?

Apr 04 ,2023 Site Editor

Automatic transfer switch is an electrical device used to automatically switch between two power sources to ensure that the power system is always in normal operation. It is used for power backup protection of key equipment, such as data centers, communication equipment, medical equipment, etc.


What is an automatic transfer switch?


Dual power means that a device accepts two different power inputs so that even if one of the power sources fails, the device can automatically switch to the other available power input. This configuration is usually used for backup power of critical equipment to ensure continuous operation of the system. Automatic changeover switch is common in data centers, medical equipment, aerospace systems and other fields that require high safety and continuity.

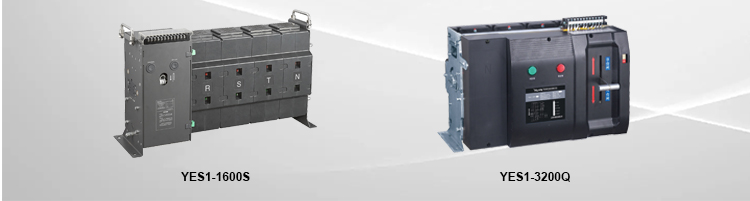

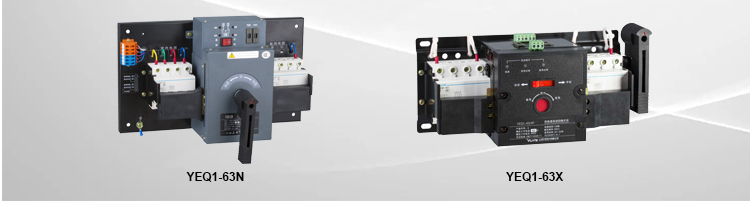

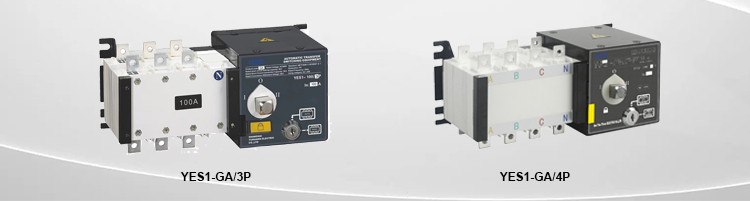

Click to view our GA series 16A-3200A automatic transfer switches details >>



What are the benefits of using an automatic transfer switch?


The main benefit of using ats switch is increased system reliability and stability. By connecting both power supplies at the same time, if one power supply fails or loses power, the system can automatically switch to the other power supply, thus avoiding the risk of downtime or data loss.


In addition, the use of dual power supplies can also increase the fault tolerance of the power supply to prevent failures caused by power overload or overheating. For applications that require high power stability, such as data centers, network servers, etc., the practice of using dual power supplies is also essential.


In short, using dual power supplies can improve system reliability, protect data security, and extend equipment life, which is very beneficial.

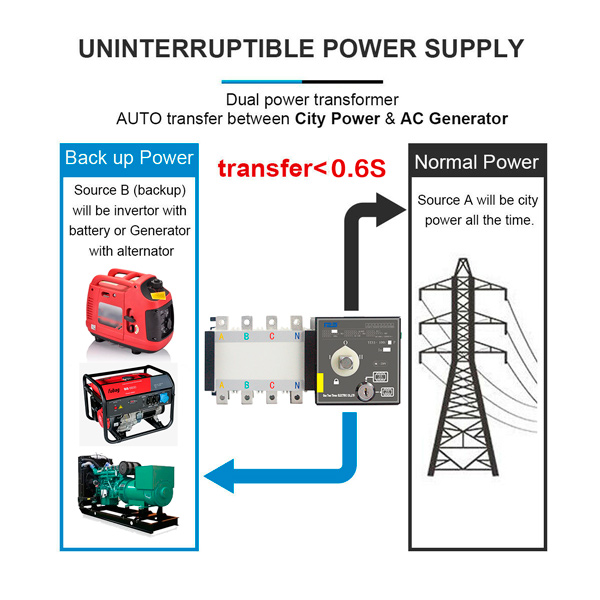

How does an automatic transfer switch work?


The working principle of the dual power supply system is as follows:


1.Dual power system consists of two power inputs. The two inputs can be two different grids, or a grid and a backup power source such as a UPS.


2.The system is equipped with an automatic switching device. When one of the input power fails, the switching device will automatically switch to the other available power input.


3.The switching process is completed instantaneously. When the simultaneous operations are stable, all continuous operations will be in a continuous state.


4.The dual power supply system is also equipped with a control circuit and a monitoring circuit. The control circuit controls the switching device, and the monitoring circuit is responsible for monitoring parameters such as the output voltage and current of the input power supply to ensure the normal operation of the power supply.


In short, the main purpose of the working principle of the dual power supply system is to ensure the continuous power supply of the equipment, so as to ensure the continuous operation of the equipment and reduce the service interruption time caused by power failure and other reasons.

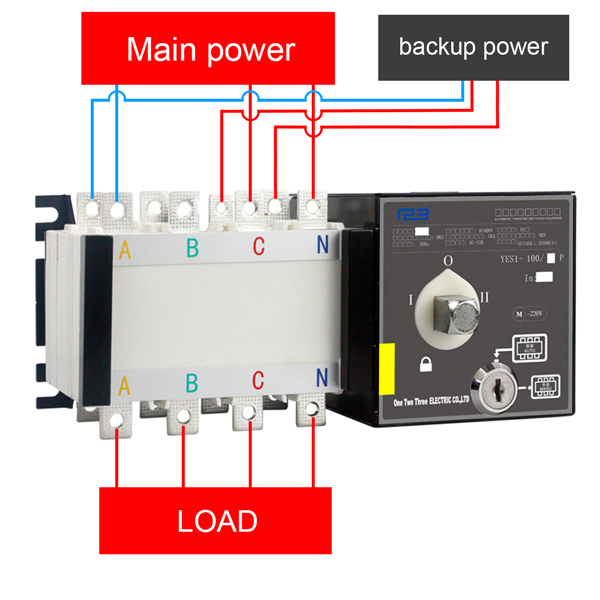

How do I install an automatic transfer switch?


The procedure for installing a dual power switch is as follows:


1.Prepare the necessary tools such as the dual power switch, wires, insulating sleeves, and screwdrivers.


2.Turn off the power to ensure safety during installation.


3.Insert the power cord into the positive and negative poles of the dual power switch, pay attention to the polarity direction and fasten it with a screwdriver.


4.Put an insulating sleeve on the connection of the power cord to protect the insulation of the wire.


5.Install the dual power switch to the required position and fix it with a screwdriver.


6.Insert the device that needs to be connected to the power supply into the output interface of the switch, and pay attention to the correct connection of the positive and negative poles of the device.


7.Perform a connection test to check whether the switching function of the dual power transfer switch is normal. When installing a dual power switch, be sure to pay attention to the voltage and current parameters of the power supply, select a switch model that meets the requirements, and ensure that the wires are connected correctly, and the positive and negative poles are connected correctly. If you are not a professional, it is recommended to ask a professional to install it.





What is the difference between manual power transfer switch and automatic transfer switch?


The difference between manual dual power transfer switch and automatic dual power transfer switch is that the manua ltransfer switch requires manual operation to switch the power supply, while the automatic switch can automatically switch the power supply according to the set conditions. Specifically:


1.Operation method: Manual dual power switch needs to switch the power supply manually, while automatic dual power switch can be automatically switched through the program.


2.Stability: The manual dual power switch is easily affected by human factors, and improper operation may affect the stability of power switch. The automatic dual power supply switch can accurately switch the power supply, avoiding the influence of human factors on the stability of power supply switching.


3.Applicable scenarios: Manual dual power transfer switch is suitable for small-scale and simple power systems, and automatic dual power transfer switch is suitable for large and complex power systems, which can improve the automation of power systems, reduce manual operations, and increase system stability. sex and reliability.





Are there any dangers associated with using an automatic transfer switch?


The dual power transfer switch is a kind of high-voltage electrical equipment. If you do not pay attention to safety matters during installation and use, it may cause dangers such as electric shock, electric fire, and equipment failure. The following are safety considerations to be aware of when using a dual power transfer switch:


1.Before installation, you must determine the voltage and current parameters of the equipment to be used, and select a dual power switch with a matching model.


2.When removing or installing the dual power transfer switch, the power supply must be cut off and the equipment must be in a shutdown state.


3.During installation, insulated tools and equipment should be used to avoid electrical shock.


4.Installation and wiring should be carried out in accordance with the safety regulations and operation manual of the equipment to avoid connection errors.


5.Avoid excessive accumulation of insulating materials, debris, etc. around the dual power transfer switch and equipment.


6.Protect the dual power switch and equipment from moisture, heat, and damage, and avoid installation in places with high humidity, high temperature, and fire sources.


7. When using, the operator should abide by the safety regulations of the equipment and follow the relevant operating procedures. At the same time, it should be ensured that the equipment is in a normal state to avoid failure. In short, when using dual power transfer switches, safety regulations and operating manuals must be strictly followed to ensure the safety of operators and equipment. If you are not familiar with related operations, it is recommended to find professional technicians for installation and operation.





To wrap things up


To sum up,dual power automatic switch is all the way commonly used and all the way standby. Automatic switching process is very fast and seamless, usually taking only a few seconds.
